ZYKON hammerset anchor FZEA II

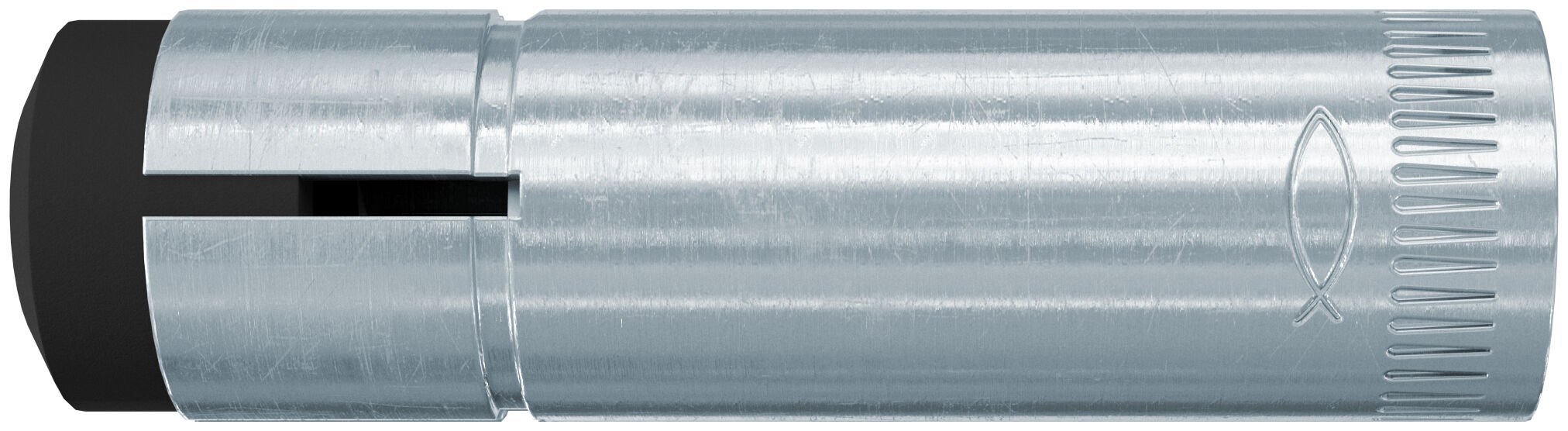

  • Product Picture: "fischer ZYKON hammerset anchor FZEA II 12 x 40 M10 HCR highly corrosion-resistant steel"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
      Art.-Nr. 47310

      fischer ZYKON hammerset anchor FZEA II 12 x 40 M10 HCR highly corrosion-resistant steel

      Produktvarianten
      Top Features
      • Fast Hammerset installation.
      • Maximum safety due to a positive fit connection.
      • High flexibility due to using conventional metric screws and threaded rods.
      • Made of highly corrosion-resistant steel for highly-corrosive atmospheres.
      • ETA approval for cracked concrete and fire resistance class R 120.

      Die Vorteile / Produktbeschreibung

      The internally threaded anchor made of highly corrosion-resistant steel with low anchoring depth for individual fixings in cracked concrete.
      Advantages
      • Hammerset anchor with ZYKON undercut technology for individual fixings in cracked and non-cracked concrete.
      • The combination of hammerset and ZYKON undercut anchor allows for individual fixings in cracked concrete.
      • The special ZYKON undercut technology reduces the energy required for installation.
      • The FZUB special drill allows for a fast installation by creating the undercut without having to change tools.
      • The embossing that is applied when expanding the anchor secures the simple control of the anchoring.
      • The almost expansion-free installation of the anchor allows small edge distances and axial spacing, thereby enabling flexible use.
      The fischer ZYKON Hammerset anchor FZEA II is an internal threaded anchor made of highly corrosion-resistant steel. The special drill bit FZUB is used to create the undercut drill hole in a single work step. The undercut anchor is set in the time-saving through-type installation. The expansion sleeves are driven in with the setting tool FZED Plus by driving in the internal expansion pin above the cone. This fills the undercut drill hole with a positive fit. The fischer ZYKON Hammerset anchor FZEA II is suitable for single-point fixings of signs, consoles, and cable trays in a highly-corrosive atmosphere.

      Anwendung und Zulassung

      Applications
      • Pipelines
      • Ventilation systems
      • Sprinkler systems
      • Cable trays
      • Suspended ceilings
      Building materials
      Approved for:
      • Concrete C20/25 to C50/60, cracked and non-cracked
      Also suitable for:
      • Concrete C12/15
      • Natural stone with dense structure
      Es gelten die Details (Baustoffe, Lasten, etc.) der ggf. verfügbaren Zulassung. Weitere Dokumente finden Sie im Download Center.
      Zulassungen
      • ETA-06/0271
      • DoP No. 0328
      • 3023222

      Montageanleitung

      Functionality
      • The FZEA II is suitable for pre-positioned installation.
      • The undercut drill hole is created using the special FZUB drill.
      • Once the anchor has been placed in the drill hole, the expansion sleeve is expanded by the driving in of the internal expansion pin with the FZED Plus setting tool, and the undercut drill hole is filled with a positive fit.
      Mounting Strip 1 Picture
      1 / 7
      • 1
        Mounting Strip 1 Picture
      • 2
        Mounting Strip 1 Picture
      • 3
        Mounting Strip 1 Picture
      • 4
        Mounting Strip 1 Picture
      • 5
        Mounting Strip 1 Picture
      • 6
        Mounting Strip 1 Picture
      • 7
        Mounting Strip 1 Picture

      Technische Daten

      ETA-approval
      Required drill bit FZUB 12 x 40
      Required setting tool FZED 12 plus
      Drill diameter (
      d0
      )      		12 mm
      Min. bolt penetration (
      lE,min
      )      		13 mm
      Max. bolt penetration (
      lE,max
      )      		19 mm
      Packaging Folding box
      Amount 100 pcs.
      GTIN (EAN-Code) 4006209473108

      Dokumente zum Download

      ETA Certification Document
      pdf, ETA-06/0271
      European Technical Assessment for fischer Zykon-Hammerset anchor FZEA II - Mechanical fasteners for use in concrete
      Erstellt am 23/03/2023
      DOP - Declaration of Performance
      pdf, DoP No. 0328
      Declaration of Performance for fischer Zykon-Hammerset anchor FZEA II (Mechanical fastener for use in concrete)
      Erstellt am 31/03/2023
      Factory Mutual
      pdf, 3023222
      FM Approval - Certificate of Compliance
      Load Table
      pdf,
      ZYKON hammerset anchor FZEA II - Permissible loads of a single anchor in normal concrete of strength class C20/25.
