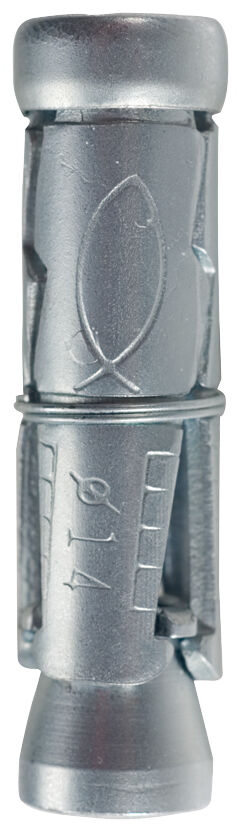

  • Product Category Picture: "Internal thread wall bolt (metric)"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Category Picture
    • Application Picture
      The cost-effective anchoring solution with internal thread

      Internal thread wall bolt (metric)

      The fischer wall bolt FWB is a zinc-plated steel anchor. The FWB is ideal for safely fixing temporary anchors, cantilevers, and handrails in non-cracked concrete. The internal threaded anchor is set in a pre-positioned installation. When the screw or threaded rod is tightened, the cone is pulled into the expansion sleeve and expands against the drill hole wall. The metric internal thread allows for the use of conventional screws or threaded rods. This increases flexibility and reduces costs. The anchor construction also enables complete disassembly.
      Product variants

      Product variants

      Filter
      Filter
      2 Product variant (s)
      Drill diameter
      Packaging
      Amount
      GTIN (EAN-Code)
      Viewed 2 of 2 variant (s)

      The advantages / Product description

      Advantages
      • The segmented steel expansion shield is pre-assembled ready for use.
      • Versatile: The internal metric thread makes this wallbolt suitable for a number of different head types.
      • Surface flush which allows the fixture to be removed.
      • Traditional design widely accepted by end users.

      Application and approval

      Applications
      • Consoles
      • Ladders
      • Staircases
      • Gates
      Building materials
      • Concrete C12/15 to C20/25, non-cracked
      You can find detailed information on building materials in the registration document.

      Assembly instruction

      Functionality
      • For pre-positioned and flush fixings.
      • The wallbolt works by torque controlled, friction locking expansion.
      • When the screw or hex. nut is tightened the cone is pulled up into the expansion shield and pushes the segments against the drill hole wall.
      • For best results ensure the drill hole is dust free.
