      Art.-No. 513777

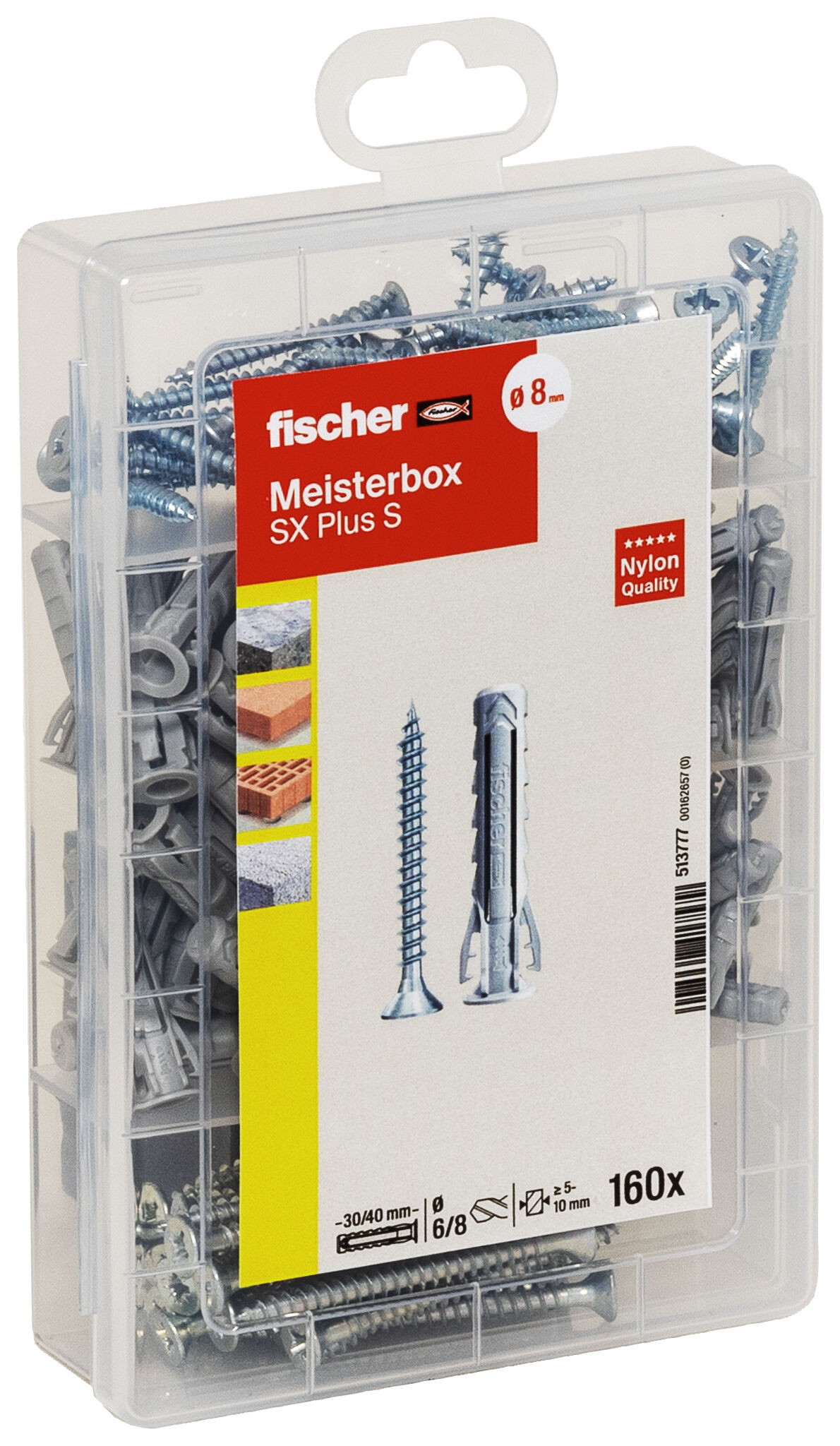

      fischer Meister-Box SX Plus + Screws

      Product variants
      Top Features
      • Simple to assemble: The edge of the plug prevents it from falling deeper into the drill hole.
      • No expansion pressure on the plug neck. This means that tiles or plaster are not damaged.
      • With the appropriate screw for maximum hold.
      • Optimum force transmission due to four-way expansion. This allows for high holding values in solid and hollow building materials.

      The advantages / Product description

      The practical MASTER-BOX with fischer expansion plugs SX Plus and screws.
      Advantages
      • The 4-way expansion ensures optimum force transmission into the building material and guarantees high holding values in solid and perforated building materials.
      • The special fixing wings ensure pre-fixation of the screw, leaving both of the user's hands free during the setting process.
      • The expansion-free plug neck prevents the creation of expansion forces on the material surface whilst screwing in the screw. This helps to prevent damage to tiles and plaster.
      • The special shape of the plug makes it easy to insert into the drill hole with just a few hammer blows.
      • The pronounced edge of the plug prevents it from slipping deeper into the drill hole and enables secure installation.
      • Due to the noticeable tightening torque, the user automatically recognizes when the screw is properly installed and thus prevents overtightening of the screw.
      The fischer Meister-Box, made from a high-quality and impact-resistant plastic, is ideal for workshop and construction site and offers an optimum price/performance ratio. The practical installation box contains a selected assortment of plugs, screws and hooks for the most frequent applications and building materials. The interaction of the ideally matched components always guarantees the choice of a secure fixing solution. Thanks to the transparent lid and the compartments, the contents can be viewed at a glance. This saves time and guarantees that the suitable fixing element is selected. The fischer Meister-Box can be reused.

      Application and approval

      Applications
      • Lamps
      • Wardrobes
      • Motion detectors
      • Skirting boards
      • Light wall shelves
      • Mirror cabinets
      • Mailboxes
      • TV consoles
      • Trellis
      • Folding shutters
      • Fire detector
      Building materials
      • Concrete
      • Solid brick
      • Solid sand-lime brick
      • Aerated concrete
      • Vertically perforated brick
      • Perforated sand-lime brick
      • Solid stone of leightweight concrete
      • Hollow block of leightweight concrete
      • Natural stone
      • Hollow brick & concrete ceilings
      • Solid gypsum boards
      You can find detailed information on building materials in the registration document.

      Assembly instruction

      Functionality
      • The SX Plus is suitable for pre-positioned and push-through installation.
      • When the plug is inserted, the fixing wings fold inwards. This locks the screw in place when it is inserted into the plug and prevents it from falling out, which is particularly helpful in overhead applications.
      • When the screw is tightened, the SX Plus expands in four directions and thus anchors itself securely in the building material.
      • The anti-rotation lock prevents the plug from twisting and allows for easy installation.
      • Suitable for wood and chipboard screws, as well as stud screws.
      • The required screw length is given by the plug length + fixture thickness + the screw diameter.

      Technical data

      Contents 50 x Expansion plug SX Plus 6 x 30
      30 x Expansion plug SX Plus 8 x 40
      50 x Countersunk screw 4.5 x 40
      30 x Countersunk screw 5.0 x 55
      Packaging Assortment box
      Amount 80 pcs.
      GTIN (EAN-Code) 4048962130638
