The medium axial slider with single or double mount and combination connection thread

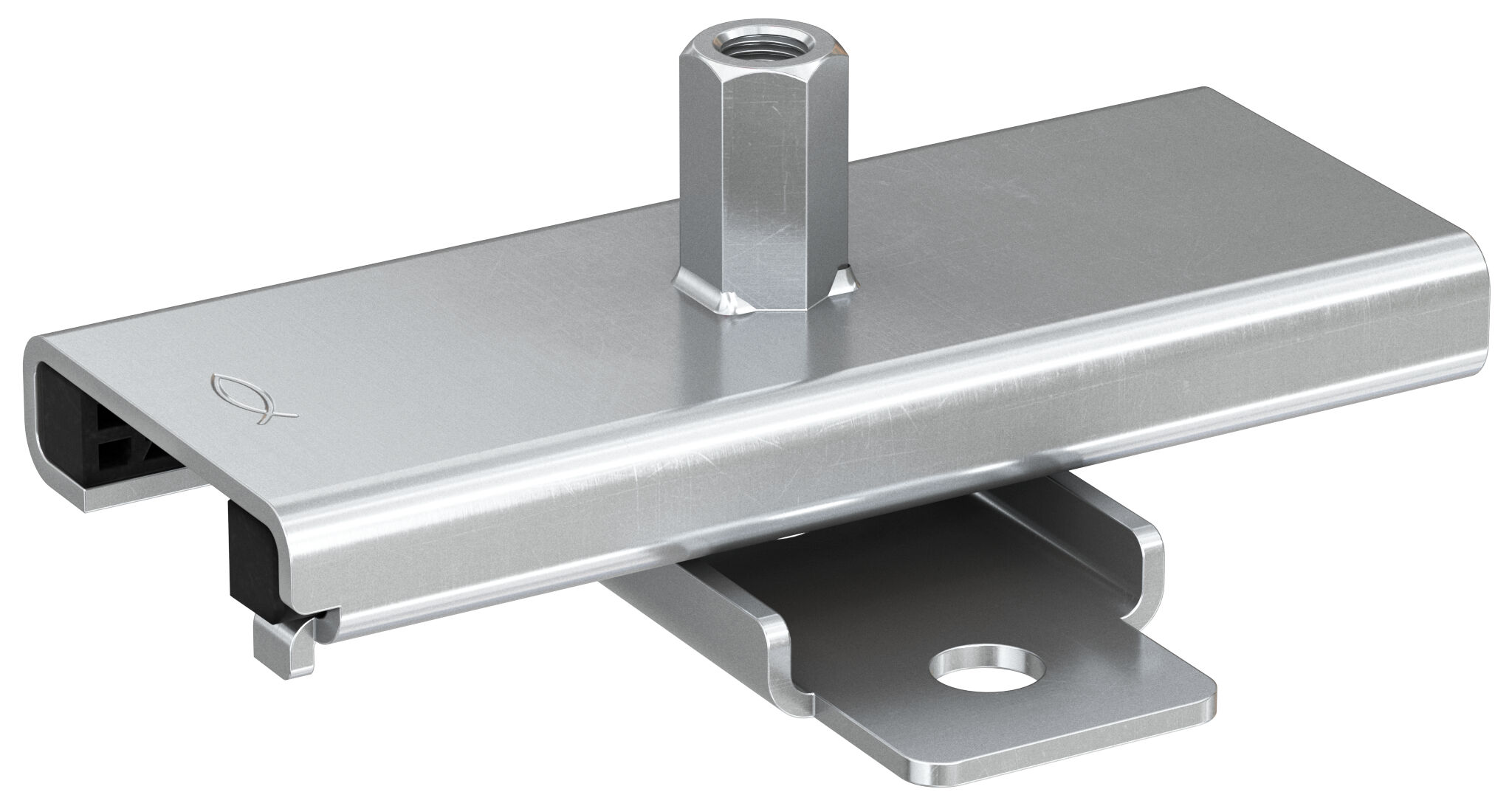

Axial slider medium FASM

The Axial slider FASM is used for absorbing pipe expansions and is recommended for medium pipes up to DN150. The FASM has a maximum sliding range of 100 mm / 150 mm and a maximum load capacity of 3,0 kN. fischer offers the FASM with a metric combination thread M10/M12. The FASL can be used for upright or suspended mounting. The galvanised version is suitable for installations in buildings. The Axial Slider FASM2 guarantees an additional plus in safety thanks to the fire protection certificate.

Product variants

2 Product variant (s)

Fire test report

Thread

Length

Width

Height

Thickness

Viewed 2 of 2 variant (s)

Advantages

The fire test report according to MLAR R30 up to a maximum of R120 guarantees objectively tested safety of function.

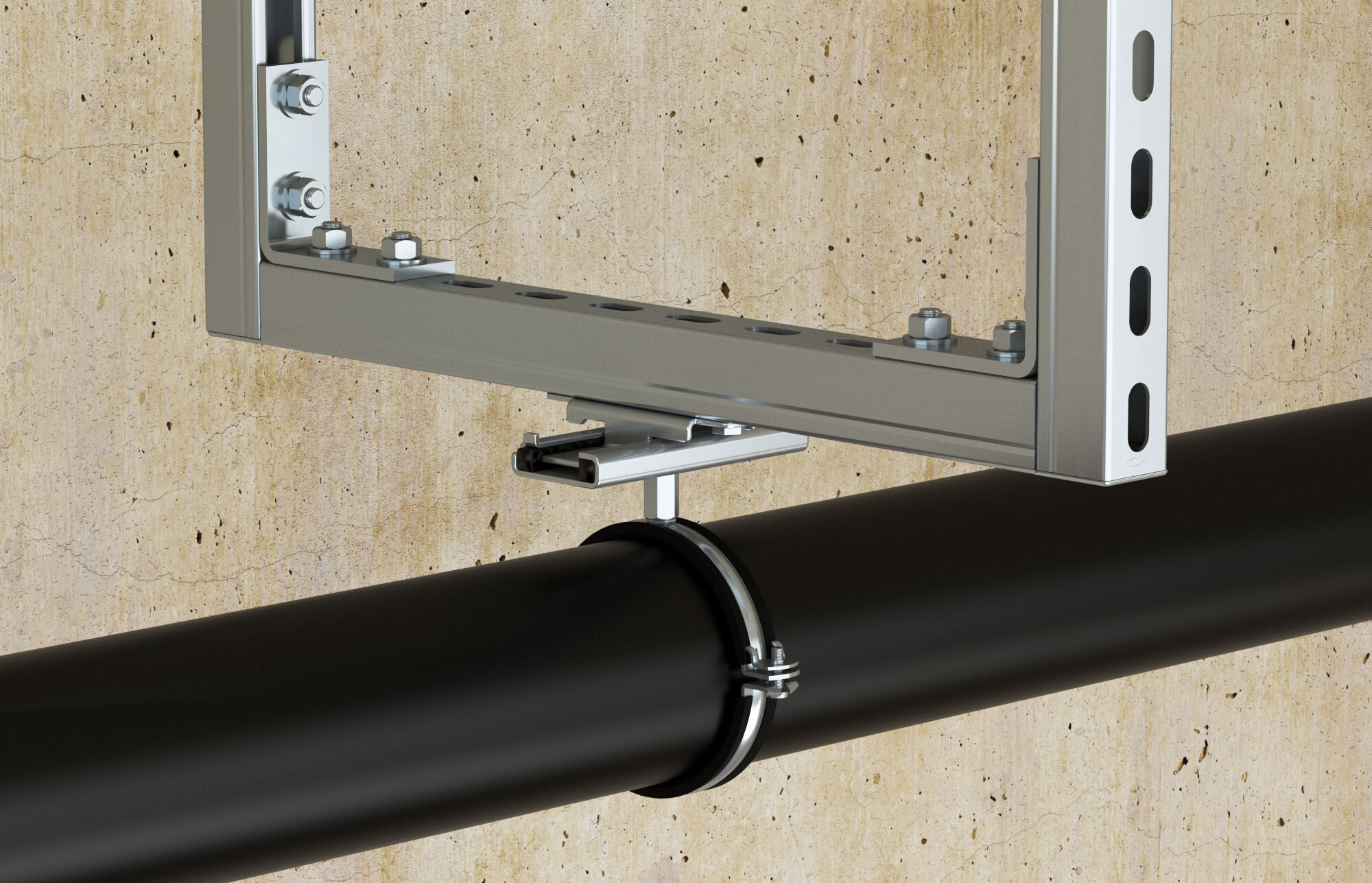

The FASM can be used flexibly, thanks to the application options as a standing or hanging slider and as a guide bearing on vertical pipelines.
The low sliding friction of the plastic sliding rails enables optimum force application at the fixed point.
The large sliding path and the long slide rails allow large expansions to be accommodated without any problems.
The base plate of the FASM is compatible with the FUS and FMS channel systems and allows fixing with one or two screws.
A cross-slide function of the FASM is possible with the FCSM cross slider as well as with the FASL2 M10.

Properties

Material: steel
Zinc plating: electro zinc-plated
Sliding strip material: glass fiber reinforced polyamide
Thermal capacity: -30 °C to +130 °C

Applications

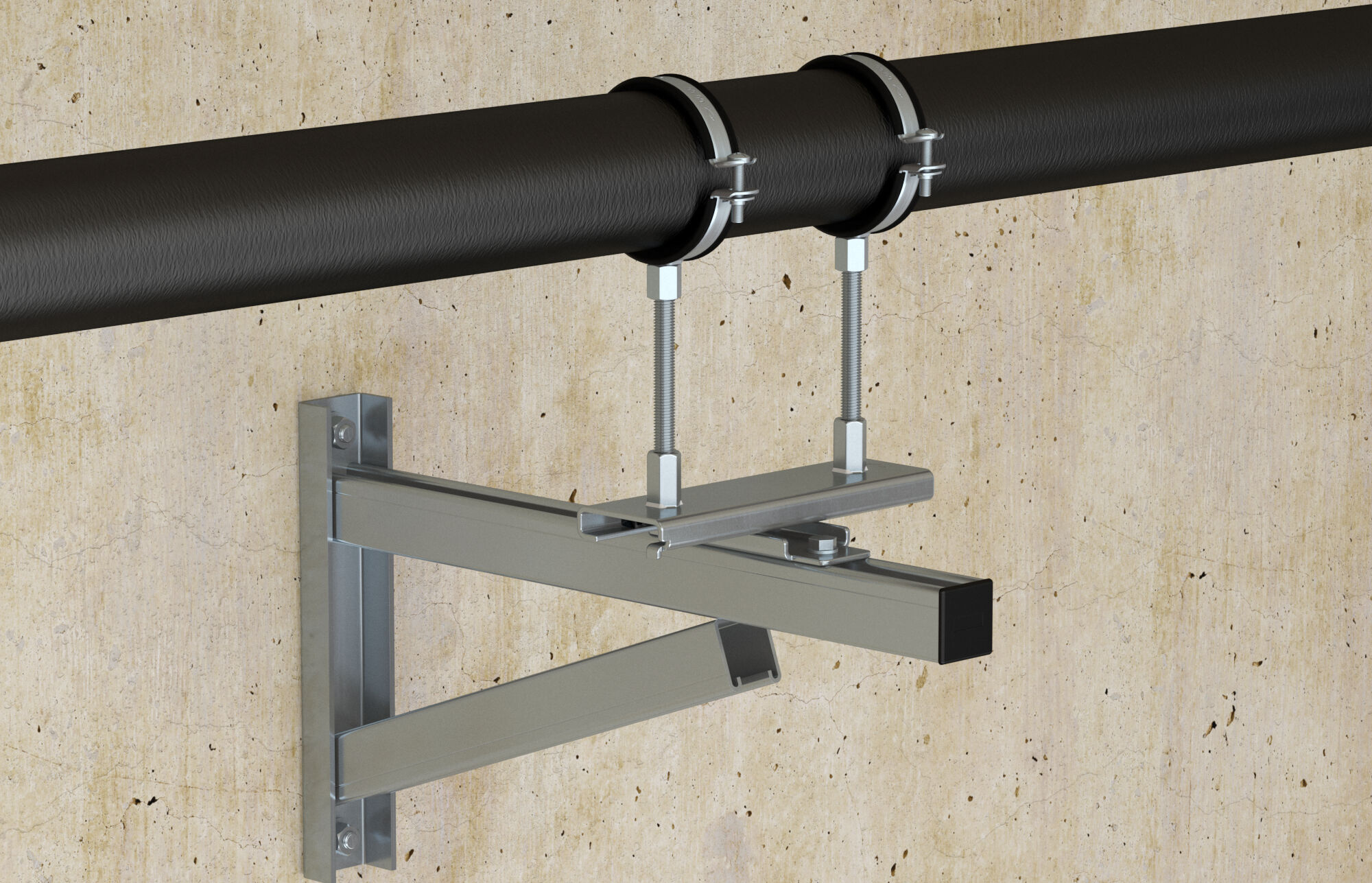

Heating pipes
Cooling lines
Steam pipes
Hot water and circulation pipes
Media lines with thermal expansion
For use in dry interior areas.

Approvals

GS 6.1/22-066-2

Mounting Strip 1 Picture

1 / 6

1
2
3
4
5
6

Mounting Strip 2 Picture

1 / 3

1
2
3

Mounting Strip 3 Picture

1 / 2

1
2

Mounting Strip 4 Picture

1 / 6

1
2
3
4
5
6

Test report (fire protection)

pdf, GS 6.1/22-066-2

Evaluation of the performance characteristics in case of fire of fischer Sliding Elements FASM-2 and FASH-2 in accor-dance with EAD 280016-00-0602

Created on 09/05/2023

Marketing Documents

pdf,

Fixed points and sliding elements.

Fire test report	—
Thread ( A )	M10 / M12
Length ( L )	160 mm
Width ( B )	140 mm
Height ( H )	63 mm
Thickness ( S )	3 mm
Max. recommended static load (suspended) ( N_rec )	2,5 kN
Max. recommended static load (upright) ( N_rec )	2,5 kN
Max. sliding distance	100 mm
Amount	10 pcs.
GTIN (EAN-Code)	4048962482775

Fire test report	Yes
Thread ( A )	M10 / M12
Length ( L )	220 mm
Width ( B )	140 mm
Height ( H )	63 mm
Thickness ( S )	3 mm
Max. recommended static load (suspended) ( N_rec )	3 kN
Max. recommended static load (upright) ( N_rec )	3 kN
Max. sliding distance	150 mm
Amount	10 pcs.
GTIN (EAN-Code)	4048962482782

Axial slider medium FASM
