Hinged pipe clamp FGRS Plus
  • Product Picture: "fischer Hinged pipe clamp FGRS Plus 32 - 37 M 8/M10"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
      Art.-No. 79434

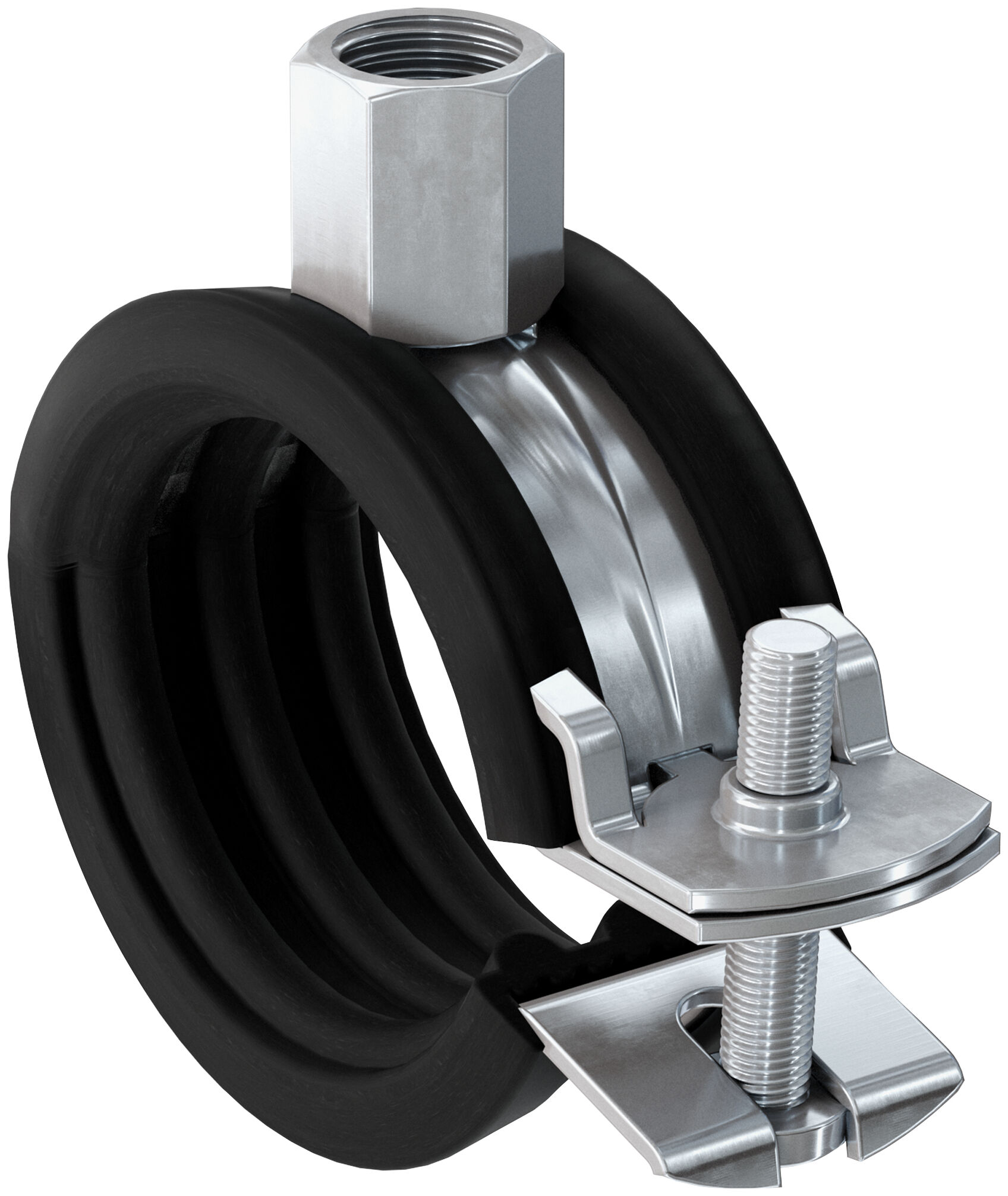

      fischer Hinged pipe clamp FGRS Plus 32 - 37 M 8/M10

      Product variants

      The advantages / Product description

      The one-piece hinged pipe clamp with rapid-locking mechanism
      Advantages
      • The rapid-locking mechanism allows a fast and time-saving installation.
      • The tight fit of the sound insulation insert prevents it from falling out when inserting the pipe.
      • The safety latch fastening guarantees pipe installation without the clamp springing open.
      • The combination connecting nut with M8/M10 thread on the FGRS Plus M8/M10 allows optimised mounting choices.
      • The screw's combination cross-drive thread allows flexibility during the installation process.
      • The compact construction of the pipe clamp enables a simple post-installation insulation.
      The fischer hinged pipe clamp FGRS Plus with sound insulation insert for fixing pipelines. The rapid-locking mechanism allows for fast, time-saving installation. Connecting nut with combination thread M8 / M10 for holding threaded rods or hanger bolts.
      Properties
      • Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130
      • Zinc plating: electro zinc-plated
      • Connecting nut: resistance welded, SW 13
      • Locking screw: panhead screw with slot/TX combination
      • Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free
      • Sound insulation: for DIN 4109
      • Temperature range: -40 °C to +100 °C
      • Hardness: 55 ± 5° ShoreA
      • Fire behaviour: DIN 4102: Class B2

      Application and approval

      Applications
      • Time-saving fixing for pipes up to Ø2“ using threaded rods or stud screws

      Assembly instruction

      Functionality
      Mounting Strip 1 Picture
      1 / 4
      • 1
        Mounting Strip 1 Picture
      • 2
        Mounting Strip 1 Picture
      • 3
        Mounting Strip 1 Picture
      • 4
        Mounting Strip 1 Picture

      Technical data

      Clamping range (
      D
      )      		32 - 37 mm
      Max. recom. static load (centr. tension) (
      Nrec
      )      		0,65 kN
      Thread (
      A
      )      		M8 / M10
      Size 1 in
      Height (
      H
      )      		68 mm
      Width x thickness clamp band (
      b x s
      )      		20 x 1.25 mm
      Height (
      Z
      )      		42 mm
      Locking screw M5
      Amount 100 pcs.
      GTIN (EAN-Code) 4006209794340
