Beam clamp FHBC - Beam clamp for the installation of FUS channels on steel girders
Beam clamp FHBC hdg
The fischer beam Clamp FHBC made of hot dip galvanized steel is used for mounting FUS profile rails on steel girders.
Product variants
Product variants
1 Product variant (s)
Width
Length
Drive
Max. recom. static load (centr. tension)
Installation torque
Amount
FHBC hdg
Art.-No. 557375
55
[mm]
90
[mm]
SW 17
3,6
[kN]
22
[Nm]
10
[pcs.]
Width
(
B
)
55
mm
Length
(
L
)
90
mm
Drive
SW 17
Max. recom. static load (centr. tension)
(
N
rec
)
3,6
kN
Installation torque
(
T
inst
)
22
Nm
Amount
10
pcs.
GTIN (EAN-Code)
4048962400090
Viewed 1 of 1 variant (s)
The advantages / Product description
Advantages
Easy installation of FUS profile to the flanges of steel girders.
The FHBC allows for the installation of FUS channels on steel girders without drilling.
Properties
Material: steel S235JR (material no. 1.0037) acc. to DIN EN 10025 (74074882)
Zinc plating: hot-dip galvanised
Application and approval
Applications

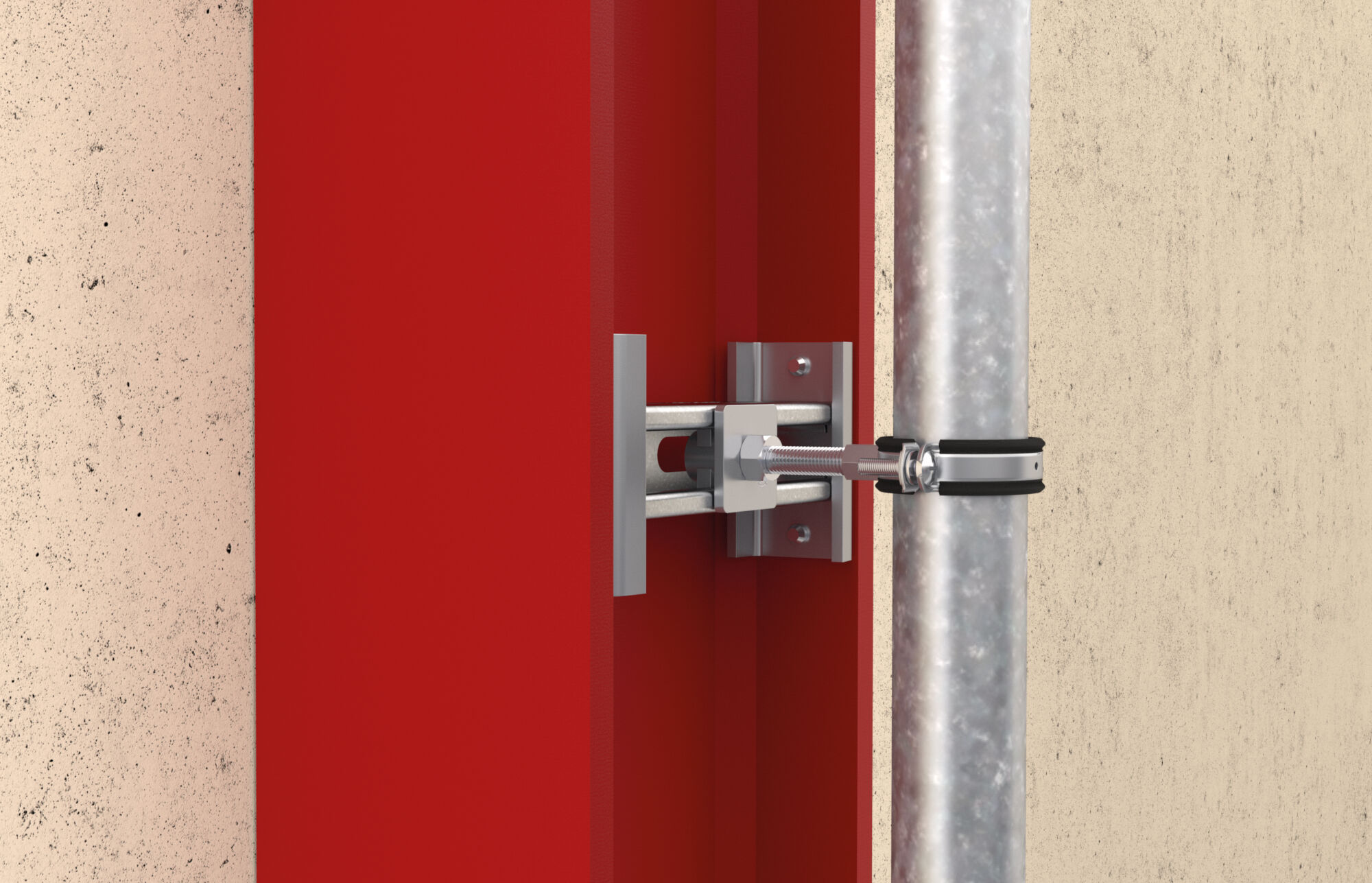

For installing FUS profile channels between the flanges on steel girders and U-profiles.
Suitable for FUS channels FUS 41.
For indoor and outdoor application.
Assembly instruction
Mounting Strip 1 Picture
1
/ 4
1
2
3
4
