Effective ventilated fire barrier designed to close the void between the inner and outer construction elements

VentiStop Cavity Barrier - FFB-VS

FFB-VS a foil-faced stone wool pre-cut unit, which has a powerful intumescent graphite strip bonded to the exposed face. The intumescent graphite strip is pre-wrapped with a durable polythene adhesive sheet to prevent water ingress. FFB-VS has been designed to provide a 25 and 50 mm ventilation gap, that allows air flow and moisture to pass down the back of the cladding. Under fire conditions, the powerful intumescent along the front edge expands horizontally to close the gap and prevent the passage of fire.

Product variants

17 Product variant (s)

To suit cavity void width

Colour

Amount

GTIN (EAN-Code)

Viewed 17 of 17 variant (s)

Advantages

Tested up to 120 minutes integrity and 90 minutes insulation (120 min insulation with FFB-VS HP80) utilising the heating and pressure conditions of EN 1363-1: 2017 and ASFP TGD19: 2014 - Open State Cavity Barriers.
Suitable to close 25 & 50 mm ventilation gap
Voids up to 450 mm wide
Free of halogens, asbestos, fi bres and silica and is non-toxic
Long life expectancy
Contributes to green building

Applications

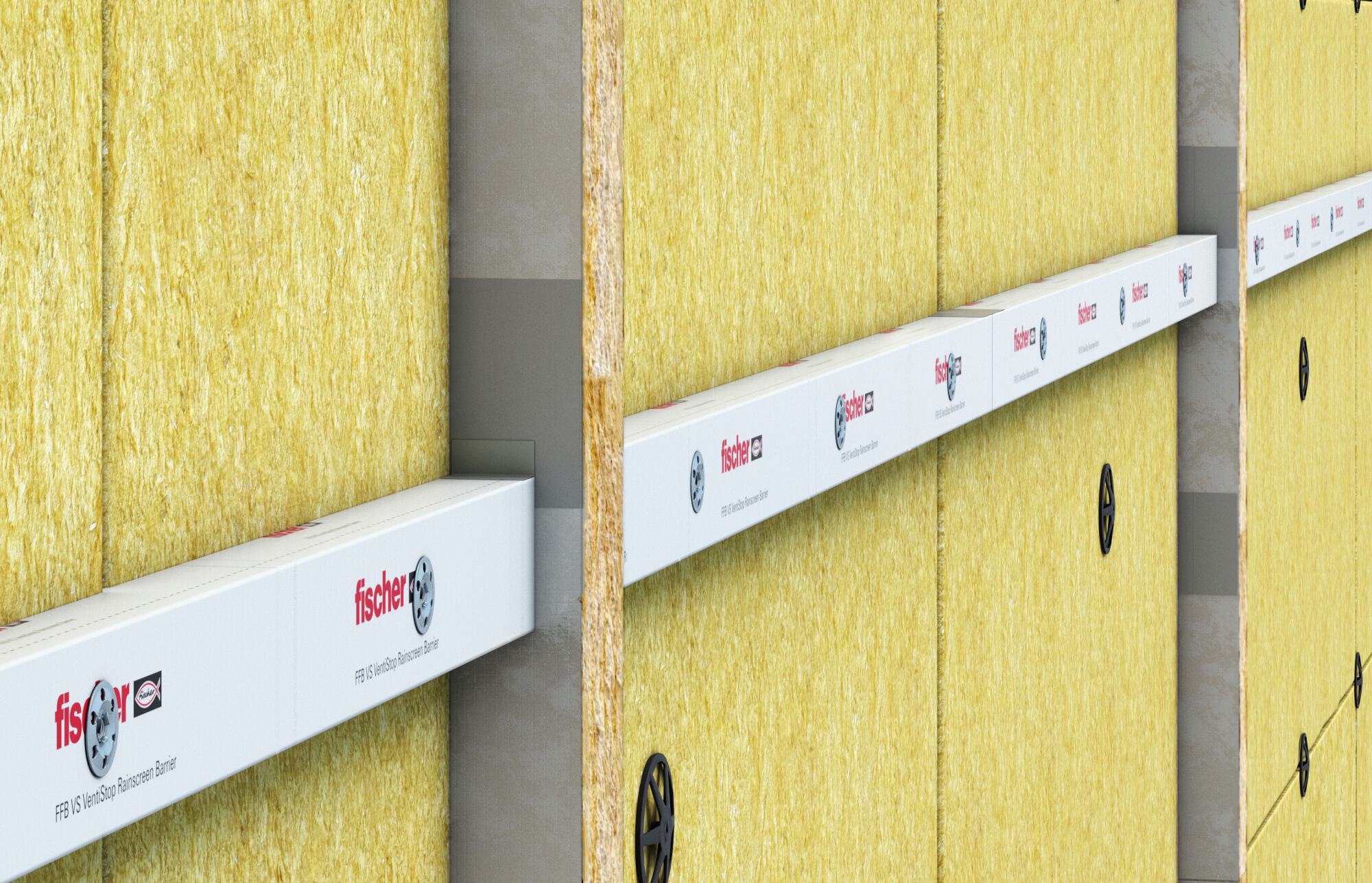

Horizontal cavities between the inner and outer construction elements

Building materials

Concrete slabs, columns and walls

You can find detailed information on building materials in the registration document.

Approvals

EPD-FIW-20230532-CBA1-EN

Functionality

FFB-VS a foil-faced stone wool pre-cut unit, which has a powerful intumescent graphite strip bonded to the exposed face. The intumescent graphite strip is pre-wrapped with a durable polythene adhesive sheet to prevent water ingress.

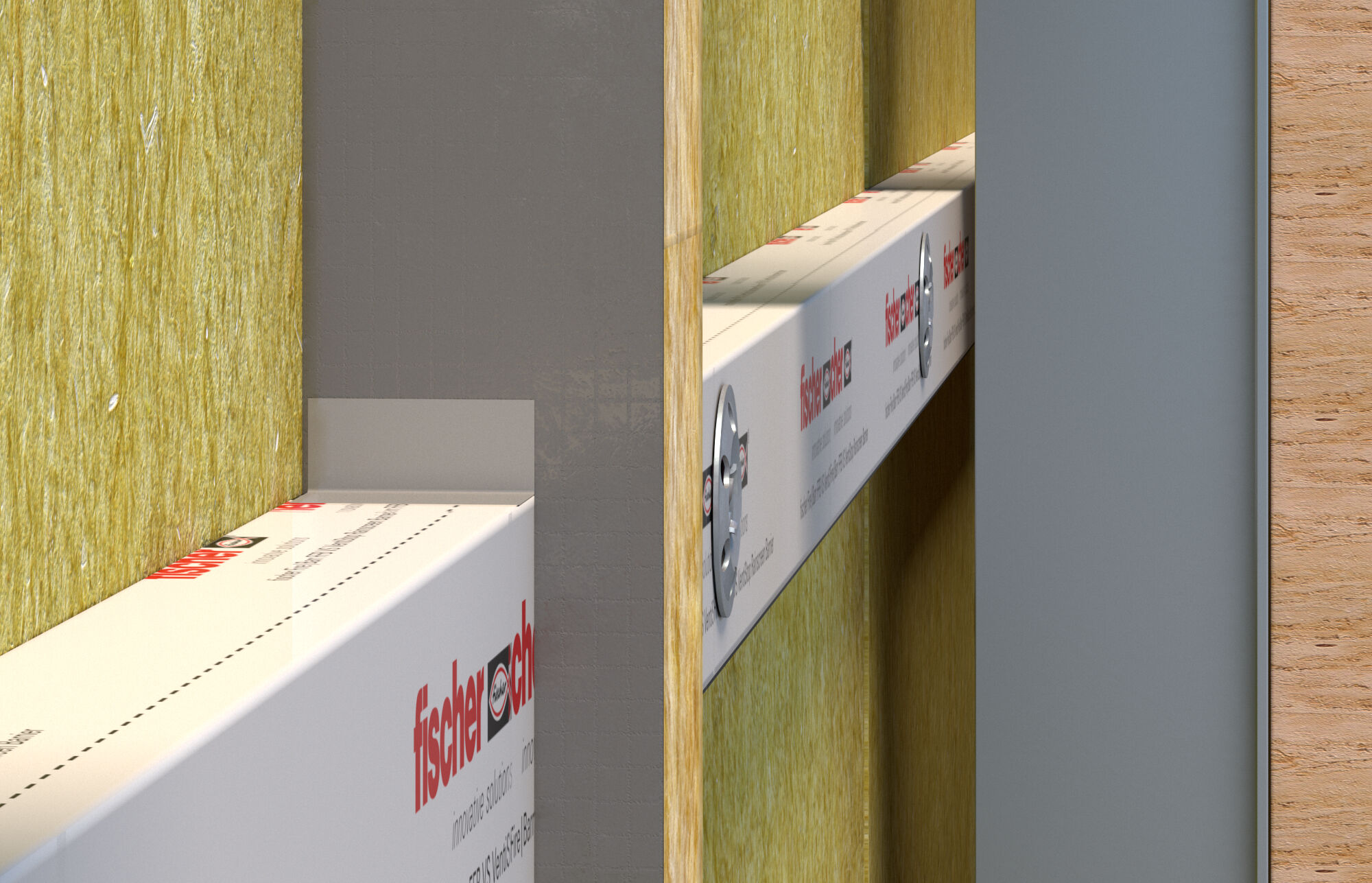

FFB-VS has been designed to provide a 25 & 50 mm ventilation gap, that allows air fl ow and moisture to pass down the back of the cladding. Under fire conditions, the powerful intumescent along the front edge expands horizontally to close the gap and prevent the passage of fire.
