The undercut anchor for thin façade panels, such as HPL and fibre cement
Zykon-Panel anchor FZP II T PA
The undercut anchor for a concealed fixing of thin façade panels such as HPL, fibre cement and mineral EQUITONE fibre cement panels. Use in conjunction with clasp systems or with other attachments.
Legend = Permission Available— = Permission not Available
Viewed 5 of 5 variant (s)
Opis izdelka
Advantages
The short geometry of the anchor allows it to be used in thin panels starting from 8 mm thickness.
The fixing is not externally visible, creating a visually appealing façade surface.
The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.
This anchor provides much better holding forces than commonly available systems which allows for the use of large format panels.
Dovoljenje aplikaciji
Applications
For high aesthetical requrements:

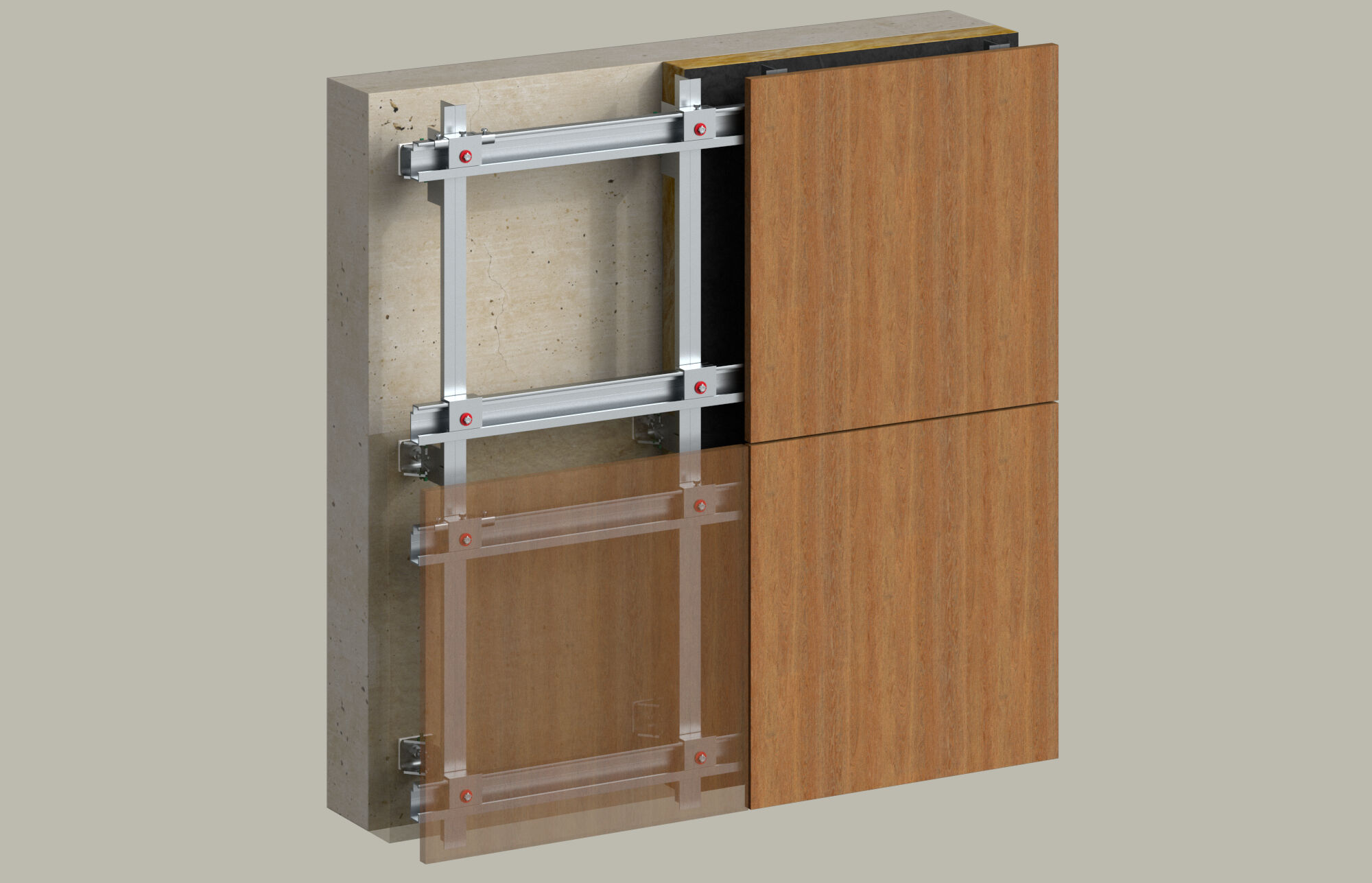

The concealed fixing of thin façade panels on exterior and interior façade as well as reveal panels.
Building materials
Fibre cement
HPL panels
Thin panel materials (≥ 8 mm)
Podroben opis najdete v priloženem dokumentu
Dovoljenja
ETA-23/0756
ETA-11/0465
ETA-22/0669
DoP No. 0359
DoP No. 0262
DoP No. 0360
Navodila uporabe
Functionality
dry drilling in ceramic
the drill hole is drilled with an absolute anchoring depth
flush installation of the anchor, the spacer washer will be in full contact with the surface of the material
drilling: first cylindrical, then conical - to create the undercut.
inserting the undercut anchor in the cylindrical-conical undercut hole
expanding the undercut anchor by "pressing down" the washer using the setting tools
European Technical Assessment for fischer-Zykon-panel anchor FZP II T for "Royal Mosa stoneware" - Anchor for the rear fixing of facade panels made of ceramic plates "Royal Mosa stoneware" according to EN 14411:2016
