P-wall holder with fixing points on both sides.

Wall holder FPH

This system allows the user to compensate the tolerance of the substrate. Wall holders and vertical profiles are attached using connectors (such as blind rivets). The wall holders are attached to the substrate using steel anchors or frame anchors.

Product variants

10 Product variant (s)

Length

Height

System

Amount

GTIN (EAN-Code)

Viewed 10 of 10 variant (s)

Advantages

The wall holder is used to absorb and transfer the loads applied to the façade system.
They compensate the tolerance of the substrate.
Available as fixed and sliding point anchors.
Absorption of thermal longitudinal expansion through slots on the sliding point anchor.

Properties

Aluminum (e. g. EN AW 6063, 6061)

Applications

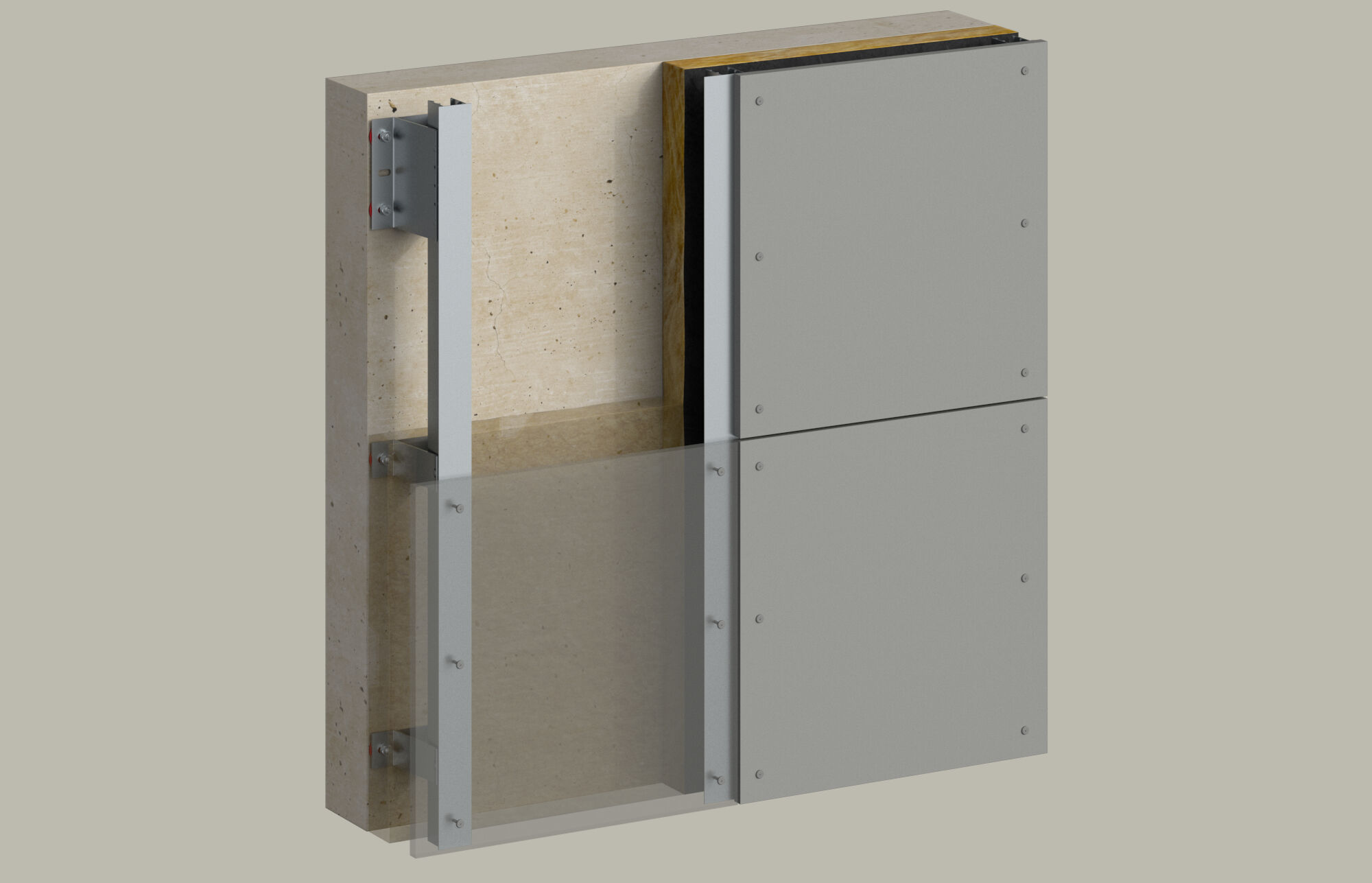

As a wall holder for subframe systems in rainscreen facades

Building materials

All building substrates

You can find detailed information on building materials in the registration document.

Functionality

Vertical load transfer from the subframe system into the building substrate
Absorption of higher loads through double-sided attachment
Compensation for structural tolerances
Easy installations with attachments on both sides

Mounting Strip 1 Picture

1 / 4

1
2
3
4

Length ( L )	30 mm
Height ( H )	180 mm
System	—
Amount	40 pcs.
GTIN (EAN-Code)	4006209184424

Length ( L )	30 mm
Height ( H )	60 mm
System	—
Amount	100 pcs.
GTIN (EAN-Code)	4006209184431

Length ( L )	54 mm
Height ( H )	180 mm
System	—
Amount	40 pcs.
GTIN (EAN-Code)	4006209184448

Length ( L )	54 mm
Height ( H )	60 mm
System	—
Amount	100 pcs.
GTIN (EAN-Code)	4006209184455

Length ( L )	68 mm
Height ( H )	180 mm
System	—
Amount	30 pcs.
GTIN (EAN-Code)	4006209489000

Wall holder FPH

Product variants

The advantages / Product description

Application and approval

Assembly instruction

Length ( L )	93 mm
Height ( H )	60 mm
System	—
Amount	90 pcs.
GTIN (EAN-Code)	4006209489024

Length ( L )	133 mm
Height ( H )	180 mm
System	—
Amount	24 pcs.
GTIN (EAN-Code)	4006209303672
