Art.-No. 523244

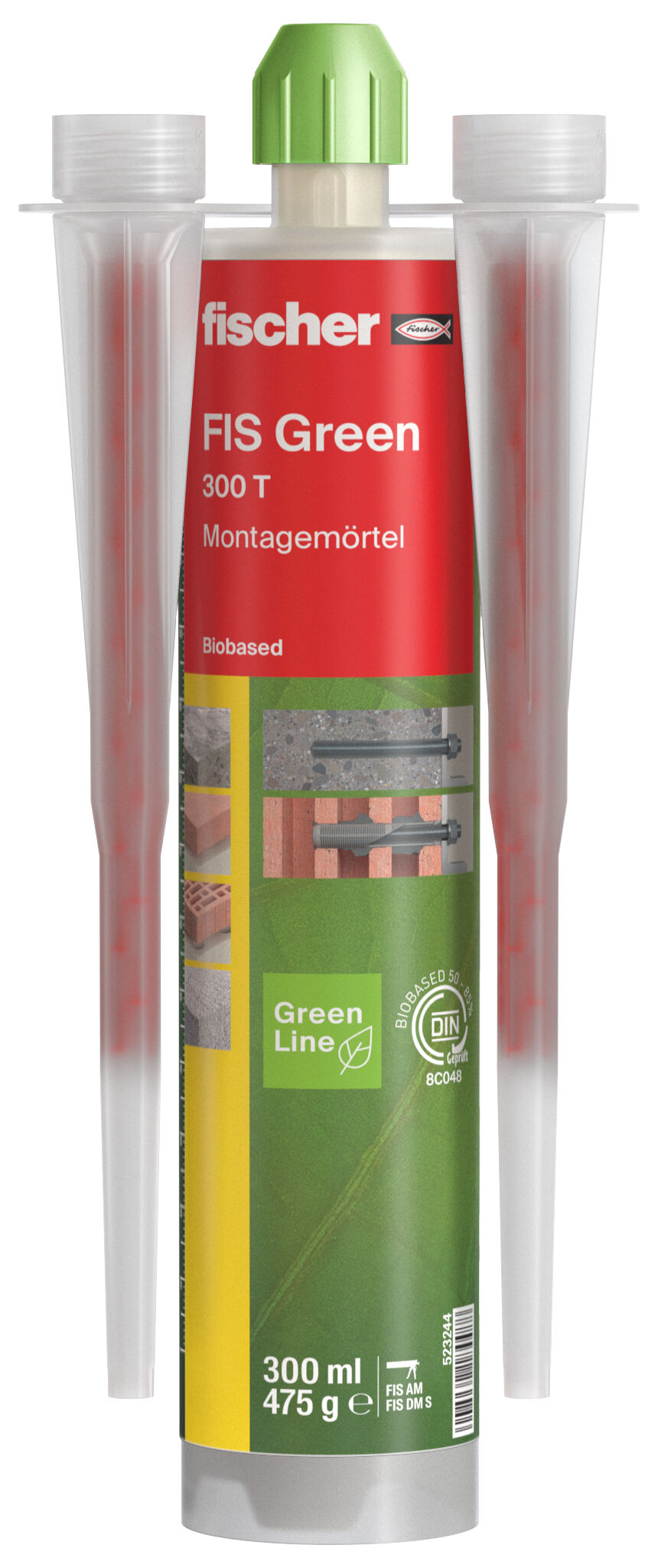

fischer Injection mortar Green 300 T K

Top Features

Produced with at least 50% sustainable raw materials. Tested and certified by DIN CERTCO / TÜV Rhineland.
First injection mortar with an Environmental Product Declaration (EPD).
Simple application via a conventional silicone application gun.
High flexibility due to co-ordinated system components.
Expansion-free fixing for small spacings and edge distances.

The green installation mortar for solid and perforated masonry, and non-cracked concrete.

Advantages

The world's first injection mortar made from renewable raw materials. The proportion of regenerative material is certified by DIN CERTCO / TÜV Rheinland.
Increases the proportion of renewable raw materials used in construction projects.
Because of the European Technical Assessment granted the injection system can be used in public buildings.
The low volatile organic substance content (best possible emissions class A+ according to French VOC Directive) has a positive effect on the assessment of fixings in "Green Building" projects.
Bio-based source materials increase quality in the residential and working environment and preserve resources for future generations.
The injection mortar, which is exempt from labelling, reduces the hazard potential for workers and the environment.
Can be used with all the fischer injection accessories.

The fischer installation mortar Green 300 T is a 2-component injection system based on vinyl ester. The hybrid mortar has an Environmental Product Declaration (EPD) from the Institute of Construction and Environment (IBU), and is manufactured using at least 50% renewable raw materials. Furthermore, the Green installation mortar has been classified in the best possible emission class, A+, for volatile substances as per the French VOC directive. The resin and hardener are only mixed and activated during application from the static mixer. The cartridge can be extruded using a conventional silicone application gun. Partially used cartridges can be reused with a new static mixer. The hybrid system offers a wide range of possible applications for internal and external use with system components such as anchor rods FIS A, anchors with internal threads, and injection anchor sleeves for fixings in concrete and masonry.

Applications

Garden
Kitchen and sanitary components
Letter boxes
Building services
Anchoring of wooden components
Securing isolation devices
For use in doors, gates and window installation
Touch-up and repair work

Building materials

Approved for anchorings in:

Concrete C20/25 to C50/60, non-cracked
Solid brick
Vertically perforated brick
Solid sand-lime brick
Perforated sand-lime brick
Aerated concrete

You can find detailed information on building materials in the registration document.

Approvals

ETA-14/0408
ETA-14/0471
DoP No. 0272
DoP No. 0273
8C048
Certificate# C0229502 - 01
EPD-DBC-FIW-20220089-IBE2-DE

Functionality

FIS Green is a 2-component injection mortar.
Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion trough the static mixer.
The injection cartridges are quick and easy to use with the fischer dispensers.
Partially used cartridges can be reused by changing the static mixer.
Related accessories for the various applications can be found on pages "non-cracked concrete" and "masonry".

Mounting Strip 1 Picture

1 / 9

Mounting Strip 2 Picture

1 / 9

Mounting Strip 3 Picture

1 / 7

Mounting Strip 4 Picture

1 / 5

Mounting Strip 5 Picture

1 / 7

ETA-approval
Language on label	DE
Contents	1 x Cartridge 300 ml, 2 x static mixer FIS MR Plus with transparent clip
Packaging	Cartridge
Amount	1 pcs.
GTIN (EAN-Code)	4048962184488

pdf, ETA-14/0408

European Technical Assessment for fischer injection system FIS GREEN - Bonded anchor with steel element for use in non-cracked concrete

Created on 19/12/2014

pdf, ETA-14/0471

European Technical Assessment fischer Injection system FIS GREEN for masonry - Injection system for use in masonry

Created on 03/02/2015

pdf, DoP No. 0272

Declaration of Performance for fischer Injection system FIS GREEN (Bonded fastener for use in concrete)

Created on 11/01/2021

pdf, DoP No. 0273

Declaration of Performance for fischer Injection system FIS GREEN (Metal injection anchors for use in masonry)

Created on 20/01/2021

pdf, 8C048

Certificate Biobased products - FIS Green 300 T

Valid from 17/07/2024
to 31/05/2030

pdf, Certificate# C0229502 - 01

NSF International Certificate

pdf, EPD-DBC-FIW-20220089-IBE2-DE

Environmental Product Declaration for fischer Injection Mortar FIS Green

Valid from 24/03/2022
to 24/03/2025

Safety data sheet for 523244 FIS Green 300 T K

Injection system FIS Green with threaded rod FIS A in solid and perforated masonry - Permissible loads for a single anchor in masonry for pre-positioned installation.

Injection system FIS Green with threaded rod FIS A resp. RG M - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Injection system FIS GREEN with internal threaded anchor RG M I - Permissible loads of a single anchor in normal concrete of strength class C20/25.

FIS Green 300 T

Curing times for injection mortar FIS Green
