Art.-No. 538547

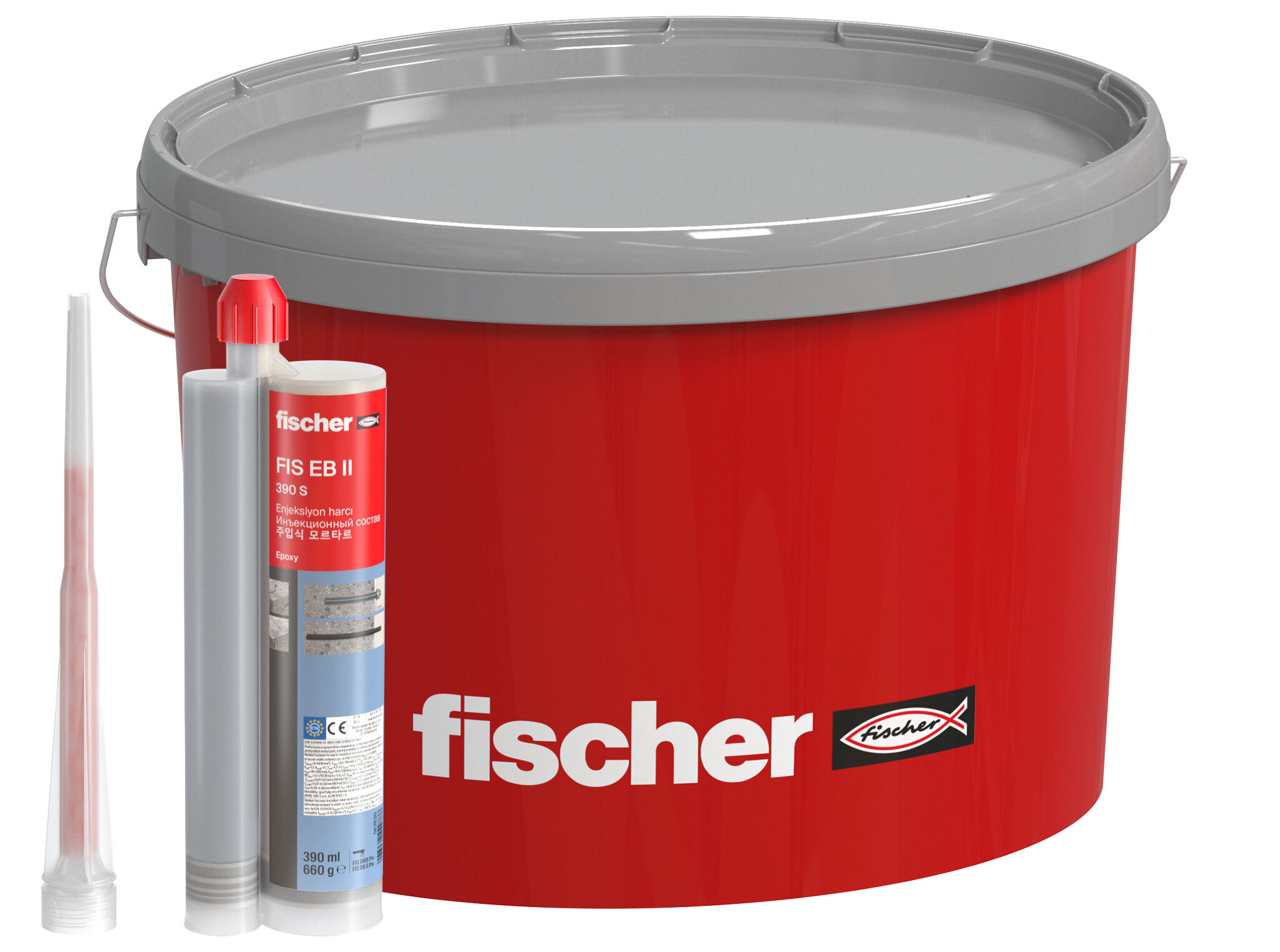

fischer Epoxy mortar FIS EB 390 in bucket

Name: fischer Epoxy mortar FIS EB 390 in bucket
Brand: fischer

Product variants

The basic epoxy mortar for applications in concrete

Advantages

FIS EB is approved for post-installed rebar connections according to ETA and for use in cracked concrete according to ETA and ICC.
The injection mortar achieves a reliable performance in many applications which enables economical use.
FIS EB can be used under various installation conditions and is approved for seismic applications, making it a safe system.
Variable anchorage depths allow ideal adaptation to the load to be transmitted.

The fischer injection mortar FIS EB is an economical epoxy resin mortar for standard applications in cracked and and non-cracked concrete and for rebar connections. It is suitable for fixing heavy loads both inside and outside. The FIS EB is processed with the approved system components fischer threaded rod FIS A or with reinforcement bars. The FIS EB can be used in dry or wet concrete, but also in water-filled drill holes. This makes the epoxy resin mortar a secure and reliable system even in unfavourable conditions.

Applications

Heavy steel constructions
Consoles
Silo installations
Tall shelving
Post-installed rebar connections

Building materials

Approved for anchorings in:

Concrete C20/20 to C50/60, cracked and non-cracked

You can find detailed information on building materials in the registration document.

Approvals

ETA-15/0440
DoP No. 0277
DoP No. 0283
GS 3.2/18-020-3

Functionality

The epoxy mortar FIS EB combined with the threaded rod FIS A is suitable for pre-positioned and push-through installation.
Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer.
The mortar is injected bubble-free from the drill hole base.
The mortar bonds the entire surface of the threaded rod with the drill hole wall and seals off the drill hole.
The threaded rod is set manually by slightly rotating it until it reached the drill hole base.
During push-through installation, the annular gap between the threaded rod and the attachment is filled with FIS EB.

Mounting Strip 1 Picture

1 / 9

Contents	20 x Cartridge 390 ml, 20 x static mixer FIS MR Plus
Packaging	Bucket
Amount	20 pcs.
GTIN (EAN-Code)	4048962264258

ETA Certification Document

pdf, ETA-15/0440

European Technical Assessment for fischer injection system FIS EB - Injection system for use in concrete

Created on 13/12/2017

DOP - Declaration of Performance

pdf, DoP No. 0277

Declaration of Performance for fischer Injection system FIS EB (Mortar for post-installed rebar connections)

Created on 18/01/2021

DOP - Declaration of Performance

pdf, DoP No. 0283

fischer Injection system FIS EB (Bonded fastener for use in concrete)

Created on 19/01/2021

Test report (fire protection)

pdf, GS 3.2/18-020-3

fischer FIS EB injection system

Created on 29/06/2018

Load Table

pdf,

Injection system FIS EB with anchor rod FIS A resp. RG M - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Curing Times

pdf,

Curing times for injection mortar FIS EB II

Marketing Documents

pdf,

FIS EB. The basic epoxy mortar for applications in concrete.
