Cast-in Channel System
Channel bolt
Channel bolt FBC-S
Channel bolt
Serrated channel bolt for optimum strength and safety.
Channel bolt FBC-S
Serrated channel bolt which in combination with the matching fully serrated channel creates precise mechanical interlocking.
Product variants
Product variants
Filter
Match
Filter
Approvals / Test reports
24 Product variant (s)
Profile
Thread
Length
Match
Amount
GTIN (EAN-Code)
FBC-S-38/23-M16x30-8.8 HDG
Art.-No. 572825
FBC-S-38/23
M16
30
[mm]
FES-H-S-38/23
50
[pcs.]
4048962523188
ETA-approval
Profile
FBC-S-38/23
Thread
(
M
)
M16
Length
(
l
)
30
mm
Match
FES-H-S-38/23
Amount
50
pcs.
GTIN (EAN-Code)
4048962523188
FBC-S-38/23-M16x40-8.8-HDG
Art.-No. 572826
FBC-S-38/23
M16
40
[mm]
FES-H-S-38/23
50
[pcs.]
4048962523195
ETA-approval
Profile
FBC-S-38/23
Thread
(
M
)
M16
Length
(
l
)
40
mm
Match
FES-H-S-38/23
Amount
50
pcs.
GTIN (EAN-Code)
4048962523195
FBC-S-38/23-M16x50-8.8 HDG
Art.-No. 572827
FBC-S-38/23
M16
50
[mm]
FES-H-S-38/23
50
[pcs.]
4048962523201
ETA-approval
Profile
FBC-S-38/23
Thread
(
M
)
M16
Length
(
l
)
50
mm
Match
FES-H-S-38/23
Amount
50
pcs.
GTIN (EAN-Code)
4048962523201
FBC-S-38/23-M16x60-8.8-HDG
Art.-No. 572828
FBC-S-38/23
M16
60
[mm]
FES-H-S-38/23
50
[pcs.]
4048962523218
ETA-approval
Profile
FBC-S-38/23
Thread
(
M
)
M16
Length
(
l
)
60
mm
Match
FES-H-S-38/23
Amount
50
pcs.
GTIN (EAN-Code)
4048962523218
FBC-S-38/23-M16x80-8.8 HDG
Art.-No. 572829
FBC-S-38/23
M16
80
[mm]
FES-H-S-38/23
25
[pcs.]
4048962523225
ETA-approval
Profile
FBC-S-38/23
Thread
(
M
)
M16
Length
(
l
)
80
mm
Match
FES-H-S-38/23
Amount
25
pcs.
GTIN (EAN-Code)
4048962523225
FBC-S-38/23-M16x100-8.8-HDG
Art.-No. 572830
FBC-S-38/23
M16
100
[mm]
FES-H-S-38/23
25
[pcs.]
4048962523232
ETA-approval
Profile
FBC-S-38/23
Thread
(
M
)
M16
Length
(
l
)
100
mm
Match
FES-H-S-38/23
Amount
25
pcs.
GTIN (EAN-Code)
4048962523232
Legend
=
Permission Available
—
=
Permission not Available
Viewed 24 of 24 variant (s)
The advantages / Product description
Advantages
FBC-S bolts with serrated underside perfectly interlock with channels with serrated lips.
Thus giving optimum load capacity with high safety.
All directional load capacity.
Plus optimum load capacity in longitudinal direction in combination with FES-H-S due to the full serration of the system.
Ideal prepositioned fixing solution, capable of covering on-site tolerances.
Suitable for applications in cracked and non-cracked concrete.
Permanently adjustable fixing solution.
Properties
Hot-dip galvanised ≥ 50 µm acc. to EN ISO 10684:2004 + AC:2009
Steel grade 8.8 acc. to EN ISO 898-1:2013
Hexagonal nut acc. to EN ISO 4032:2012
Application and approval

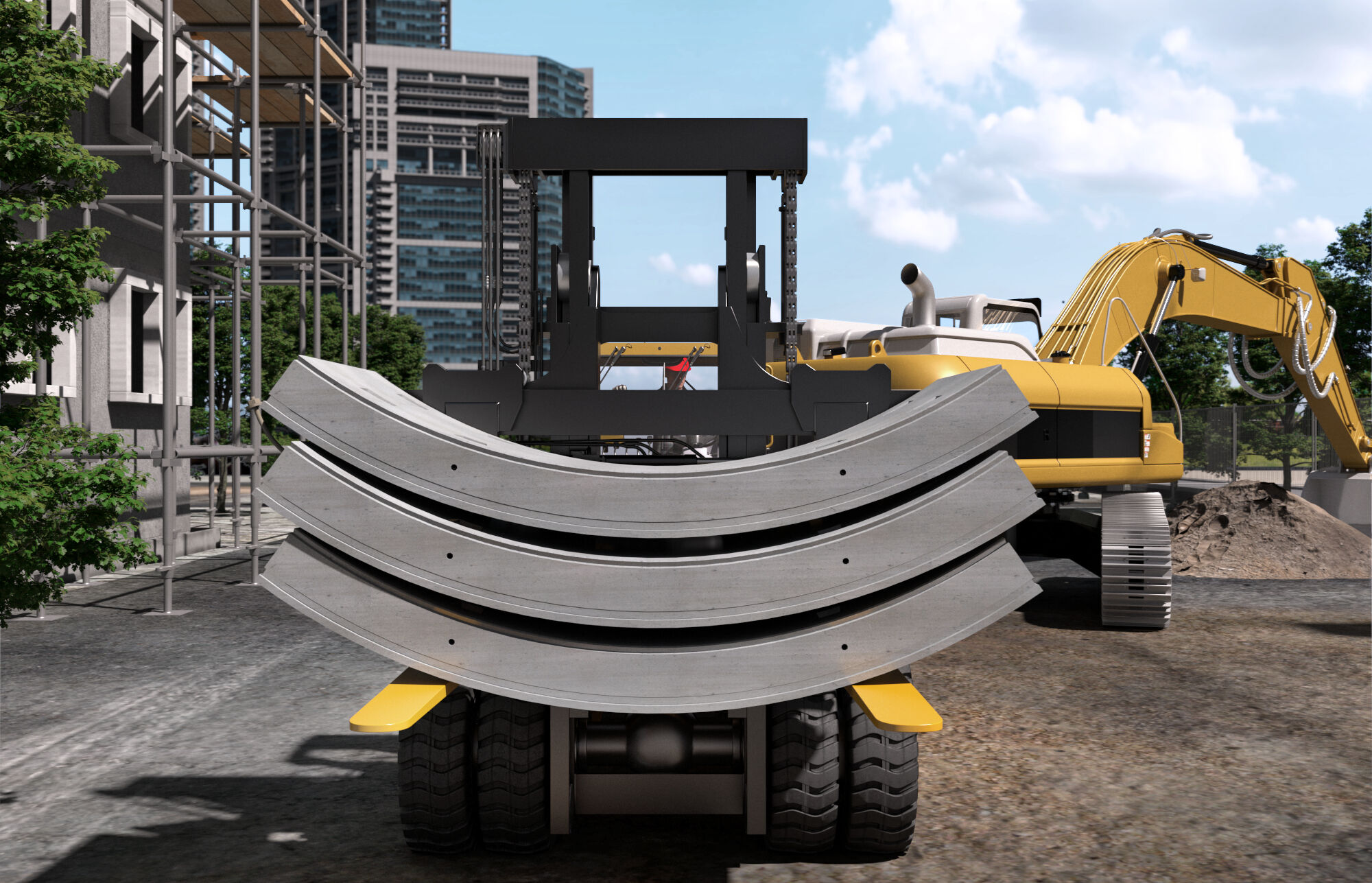

Applications
Suitable for all types of buildings or structures
Façades
Prefabricated elements
Railways
Metro tunnels and stations
Industrial applications
Building materials
Concrete C12/15 to C90/105, cracked and non-cracked
You can find detailed information on building materials in the registration document.
Approvals
ETA-18/0862
DoP No. 0333
Assembly instruction
Functionality
FBC-S channel bolts can be variably set in the planned position of Cast -in Channels.
They are easily fixed by turning them clockwise and then applying the specified torque moment.
Suitable for use in combination with hot-rolled and serrated Cast-in Channels fischer FES-H-S.
Mounting Strip 1 Picture
1
/ 14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Documents for download
ETA Certification Document
pdf,
ETA-18/0862
European Technical Assessment for fischer Anchor Channel FES with fischer Channel Bolts FBC
Created on 31/03/2023
DOP - Declaration of Performance
pdf,
DoP No. 0333
Declaration of Performance for fischer Anchor Channel FES with fischer Channel Bolts FBC (Anchor channels for use in concrete)
Created on 25/07/2023
Technical Data Sheet
pdf,
FBC-S-29/20-HDG Channel bolt
Technical Data Sheet
pdf,
FBC-S-38/23-HDG Channel bolt
